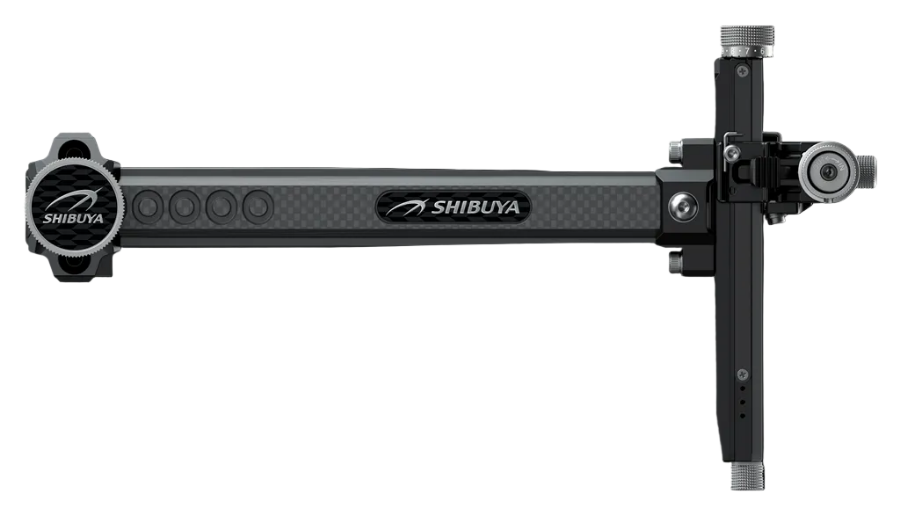

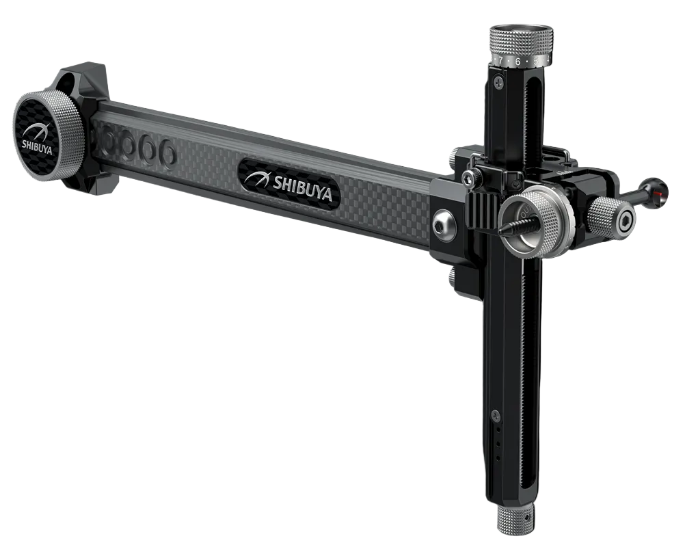

SHIBUYA RECURVE SIGHT ULTIMA RC PRO G2 520-9" CARBON SINGLE MOUNT RH

Shibuya Ultima RC PRO G2 520 Single Mount Recurve Sight

The evolution of the world’s most trusted competition recurve sight

The Shibuya Ultima RC PRO G2 520 represents the next step in Shibuya’s legendary recurve sight lineage. Trusted by medalists for over two decades, the RC series now evolves with a newly engineered polygonal carbon extension and refined internal architecture to deliver even greater rigidity, balance, and quietness. Designed for elite competitive archers, the RC PRO G2 offers unmatched precision, smooth operation, and absolute reliability on the shooting line.

With Shibuya’s finest micro-adjustment system to date and proven zero-backlash performance, the Ultima RC PRO G2 is built to perform when results matter most.

Key Features

• Ultra-Fine Micro Adjustment – SHIBUYA’s smallest click increment at approximately 0.04 mm per click for extremely precise elevation and windage control
• Zero Backlash Performance – Integrated ZPE System eliminates play in all adjustments, ensuring firm, repeatable clicks even during reverse movement
• Polygonal Carbon Extension with Click-Ball Mounting – Optimised rigidity, improved balance, and reduced vibration, with precise, repeatable positioning during setup

Specifications (520 Single Mount)

• Weight: 236 g (including sight pin)
• Aperture Distance (APD): 83 – 249 mm
• Elevation Drive: Lockdown-less screw drive with jump mechanism
• Elevation Travel Range: Approx. 107 mm
• Adjustment Increment:
  • 1 click = 1/640" (≈ 0.04 mm)
• Windage Travel Range: 5.4 mm
• Tilt Adjustment: Yes
• Compatible Sight Pin Thread: 8-32
• Extension Length: 233 mm (approx. 9")
• Extension Adjustment Range: 60 mm
• Materials:
  • Elevation & Box Section: 6000-series aluminum alloy
  • Extension: Carbon fiber
• Handedness: RH / LH
• Colors: Black, Gunmetal, Blue, Red
• Release Year: 2025

Included Accessories

• Soft sight case
• No.10-24 mounting screw
• Hex wrenches (1.5 / 2.5 / 3 mm)
• Blank sight tape

The Ultima RC PRO G2 520 is built for recurve archers who demand absolute precision, flawless adjustment feel, and competition-proven performance—shot after shot, match after match.
