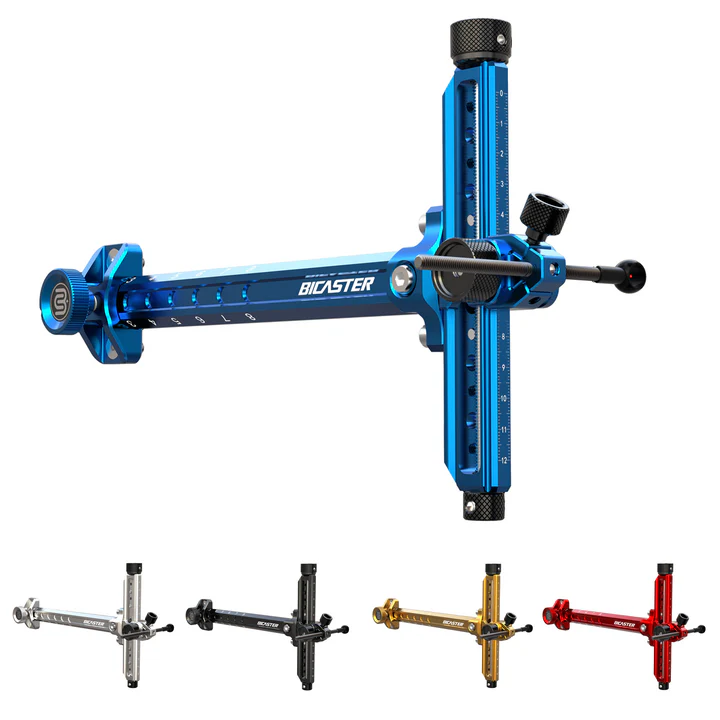

BICASTER AURA Recurve Sight

Model: AURA

Material: Aluminum

Color: Black/Blue/Gold/Red/Silver

Weight: 200g

Thread: #10-24

Sight Adjustment Instructions

1. Fine Adjustment – Left & Right

Rotate the horizontal fine-adjustment knob to move the sight point left or right.

One full rotation = approx. 0.8 mm (1/32")

Each click = approx. 0.04 mm (0.0016")

One full rotation = 20 clicks

---

2. Fine Adjustment – Up & Down

Rotate the vertical fine-adjustment knob to move the sight point up or down.

One full rotation = approx. 1 mm (1/24")

Each click = approx. 0.05 mm (0.002")

One full rotation = 20 clicks

---

3. Rapid Vertical Adjustment

Press the release lever and slide the scale block up or down to quickly adjust the vertical position of the sight.
⚠ Ensure the lever is fully pressed so that the locking block engages correctly.

---

4. Quick-Adjust Mount

Loosen the main locking screw on the mount to quickly adjust its angle. After loosening, the mount can be tilted upward or downward as needed
